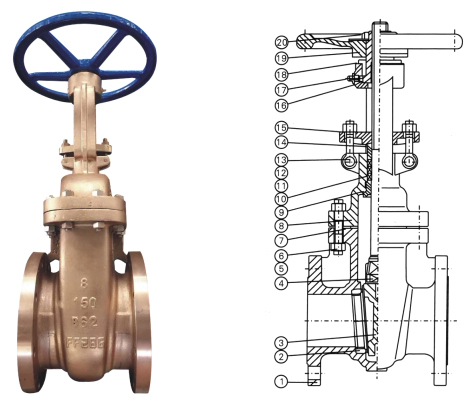

| 序号 | 零件名称 | 材料 | ||||
| WCB/-Trim 1 | WCB/Trim 5 | WCB/Trim 8 | CF8/304 | CF8M/316 | ||
| 1 | 阀体 | ASTM A216 WCB | ASTM A216 WCB | ASTM A216 WCB | ASTM A351CF8 | ASTM A351CF8M |
| 2 | 密封圈 | A105+13Cr | A105+STL | A105+STL | ASTM A351 CF8 | ASTM A351 CF8M |
| 3 | 闸门 | ASTM A216 WCB+13CrA | ASTM A216 WCB+STL | ASTM A216 WCB+13Cr | ASTM A351 CF8 | ASTM A351 CE8M |
| 4 | 阀杆 | ASTM A182 F6a | ASTM A182 F6a | ASTM A182 F6a | ASTM A182 F304 | ASTM A182 F304 |
| 5 | 阀盖螺栓 | ASTM A193 B7 | ASTM A193 B7 | ASTM A193 B7 | ASTM A193 B8 | ASTM A193 B8M |
| 6 | 阀盖蜻母 | ASTM A194 2H | ASTM A194 2H | ASTM A194 2H | ASTM A194 8 | ASTM A194 8M |
| 7 | 垫片 | Soft Iron+Graphite or 304+Graphite | 304+Graphite 316M+Graphite | |||
| 8 | 阀盖 | ASTM A216WCB | ASTM A216 WCB | ASTM A216 WCB | ASTM A351 CF8 | ASTM A351 CF8 |
| 9 | 倒密封座 | ASTM A182 F6a | ASTM A182 F6a | ASTM A182 F6a | ASTM A351 CF8 | ASTM A351 CF8M |
| 10 | 填料 | Graphite | Graphite | Graphite | Graphite | Graphite |
| 11 | 活节螺栓 | ASTM A193 87 | ASTM A193 B7 | ASTM A193 B7 | ASTM A193 B8 | ASTM A193 B8M |
| 12 | 螺母 | ASTM A194 2H | ASTM A194 2H | ASTM A194 2H | ASTM A194 8 | ASTM A194 8M |
| 13 | 销 | ASTM AISI 1045 | ASTM AISI 1045 | ASTM AISI 1045 | 304ss | 304ss |
| 14 | 填料压套 | ASTM A182 F6a | ASTM A182 F6a | ASTM A182 F6a | ASTM A182 F304 | ASTM A182 F304 |
| 15 | 填料压板 | ASTM A216 WCB | ASTM A216 WCB | ASTM A216 WCB | ASTM A351 CF8 | ASTM A351 CF8M |
| 16 | 阀杆螺母 | Copper alloy | Copper alloy | Copper alloy | Copper alloy | Copper alloy |
| 17 | 紧定螺钉 | Carbon steel | Carbon steel | Carbon steel | Carbon steel | Carbon steel |
| 18 | 卡套支架螺母 | Carbon steel | Carbon steel | Carbon steel | Carbon steell | Carbon steel |
| 19 | 手轮 | Carbon steel | Carbon steel | Carbon stee | Carbon steel | Carbon steel |
| 20 | 手轮螺母 | Carbon steel | Carbon steel | Carbon steel | Carbon steel | Carbon steel |
| 磅级 Class |

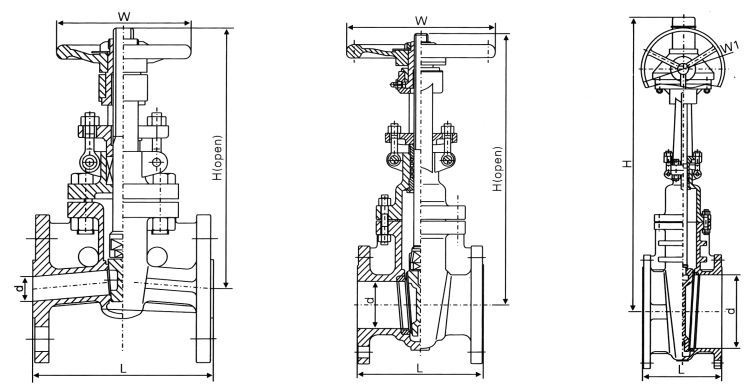

口径 | 尺寸(mm) | 重量（Kg) | |||||||||
| NPS | DN | L | d | H | H1 | W | W1 | 手轮 | 传动装置 | |||
| RF | RTJ | BW | ||||||||||
| Class 150 JIS 10K |
1/2 | 15 | 108 | 119 | 108 | 13 | 195 | 120 | 4 | |||
| 3/4 | 20 | 117 | 130 | 117 | 19 | 210 | 120 | 5 | ||||
| 1 | 25 | 127 | 140 | 127 | 25 | 240 | 140 | 7 | ||||
| 114 | 32 | 140 | 153 | 140 | 32 | 300 | 180 | 10 | ||||
| 11/2 | 40 | 165 | 178 | 165 | 38 | 395 | 200 | 14 | - | |||
| 2 | 50 | 178 | 191 | 216 | 51 | 400 | 200 | 19 | ||||
| 21/2 | 65 | 190 | 203 | 241 | 64 | 435 | 200 | 25 | ||||
| 3 | 80 | 203 | 216 | 283 | 76 | 515 | 250 | 33 | ||||
| 4 | 100 | 229 | 241 | 305 | 102 | 595 | 280 | 49 | ||||
| 5 | 125 | 254 | 267 | 381 | 127 | 725 | 280 | 62 | ||||
| 6 | 150 | 267 | 279 | 403 | 152 | 780 | 820 | 300 | 310 | 77 | 104 | |
| 8 | 200 | 292 | 305 | 419 | 203 | 975 | 1020 | 350 | 310 | 123 | 150 | |
| 10 | 250 | 330 | 343 | 457 | 254 | 1150 | 1200 | 400 | 310 | 188 | 215 | |
| 12 | 300 | 356 | 368 | 502 | 305 | 1380 | 1430 | 450 | 310 | 288 | 315 | |
| 14 | 350 | 381 | 394 | 572 | 337 | 1545 | 1580 | 500 | 310 | 385 | 435 | |
| 16 | 400 | 406 | 419 | 610 | 387 | 1733 | 1780 | 500 | 460 | 500 | 552 | |
| 18 | 450 | 432 | 445 | 660 | 438 | 1915 | 1990 | 500 | 460 | 601 | 653 | |
| 20 | 500 | 457 | 470 | 711 | 489 | 2122 | 2220 | 600 | 460 | 764 | 816 | |
| 24 | 600 | 508 | 521 | 813 | 591 | 2520 | 2600 | 600 | 460 | 1007 | 1185 | |
| 26 | 650 | 559 | 一 | 864 | 641 | 2800 | 600 | 一 | 1550 | |||
| 28 | 700 | 610 | 914 | 692 | 3050 | 600 | 1880 | |||||
| 30 | 750 | 610 | 一 | 914 | 743 | 3130 | 600 | 2300 | ||||
| 32 | 800 | 660 | 一 | 965 | 779 | 3280 | 600 | 一 | 2550 | |||
| 34 | 850 | 711 | 1016 | 830 | 3500 | 600 | 2950 | |||||
| 36 | 900 | 711 | 1016 | 874 | 3720 | 600 | 3390 | |||||
